Unlacquered Brass Shower System - Brass Round Head
- Regular price
- $580.00 USD
- Sale price
- $580.00 USD
- Regular price
-
$670.00 USD
30-days Free Returns
Enjoy hassle-free shopping with our 30-day free returns policy! If you're not completely satisfied with your purchase, you have a whole month to return it for a full refund or exchange. We're committed to ensuring your shopping experience is risk-free and enjoyable.
Hot and Cold Water Supplied for this unlacquered brass bathroom shower set: The handheld shower has both cold and hot water inlet, you can use the handle to adjust the water temperature as you like. It's an extremely practical function which make this brass shower system with rain shower heads suitable for different weather and other demands.
- ✦ Solid unlacquered brass
- ✦ ½" US NPT connections
- ✦ 2-way exposed mixer
- ✦ Living patina finish
- ✦ Free express shipping
Rough-in: 2-way or 3-way?
Count the water outlets. Rain shower head + handheld + tub faucet = 3-way. If one of the three is missing (for example shower head + handheld only) it is a 2-way installation.
This model: 2-way (rain shower head + handheld). The handheld is fed from a diverter on the riser – turn it to switch between the rain head and the handheld.

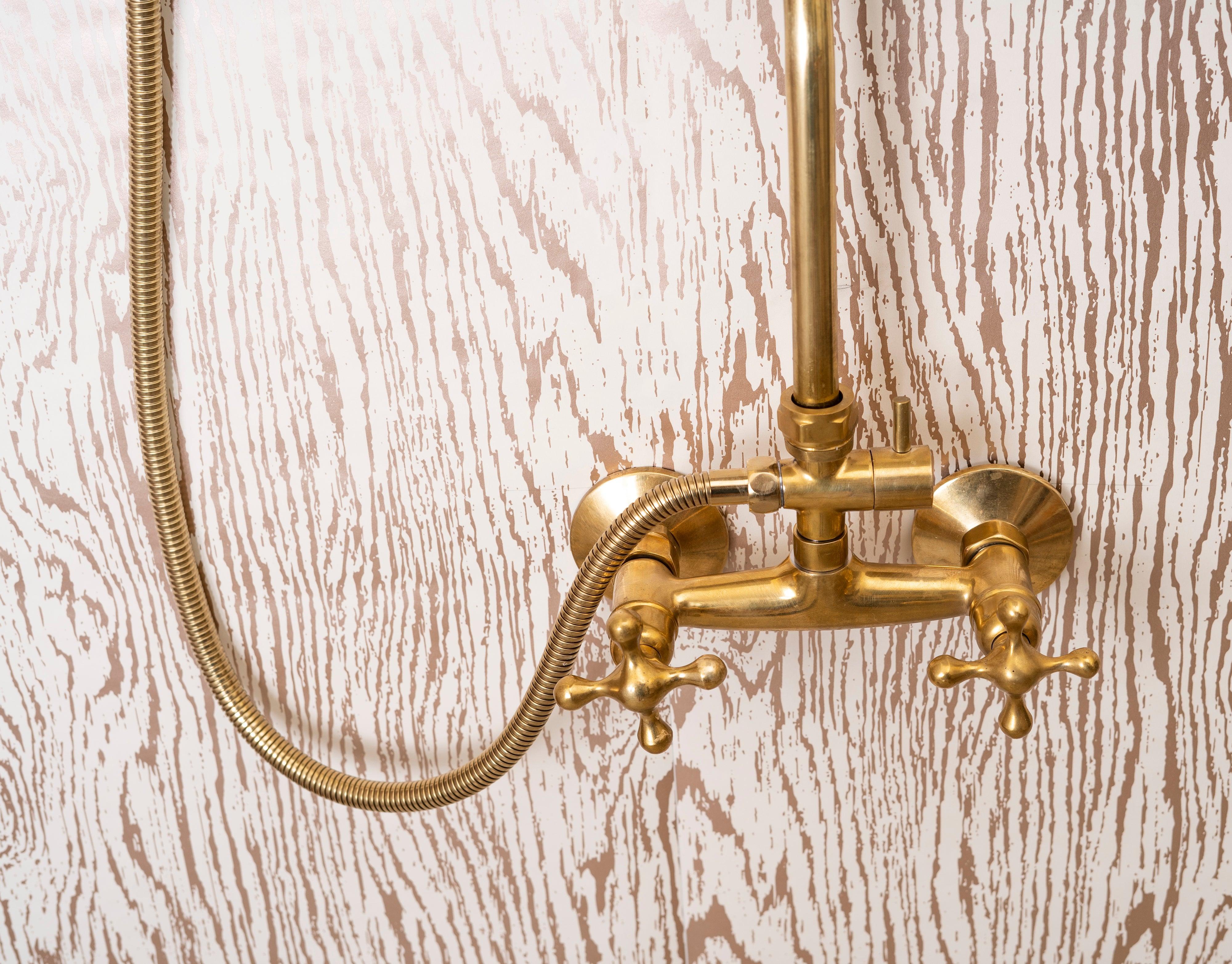

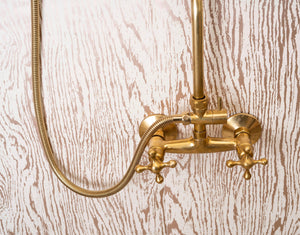

It is an exposed system: the mixer sits on the wall, so you only need two ½" NPT connections – hot left, cold right at 6" centers. No valve inside the wall. The mixer sets the temperature; the diverter above it sends water to the rain head or the handheld.

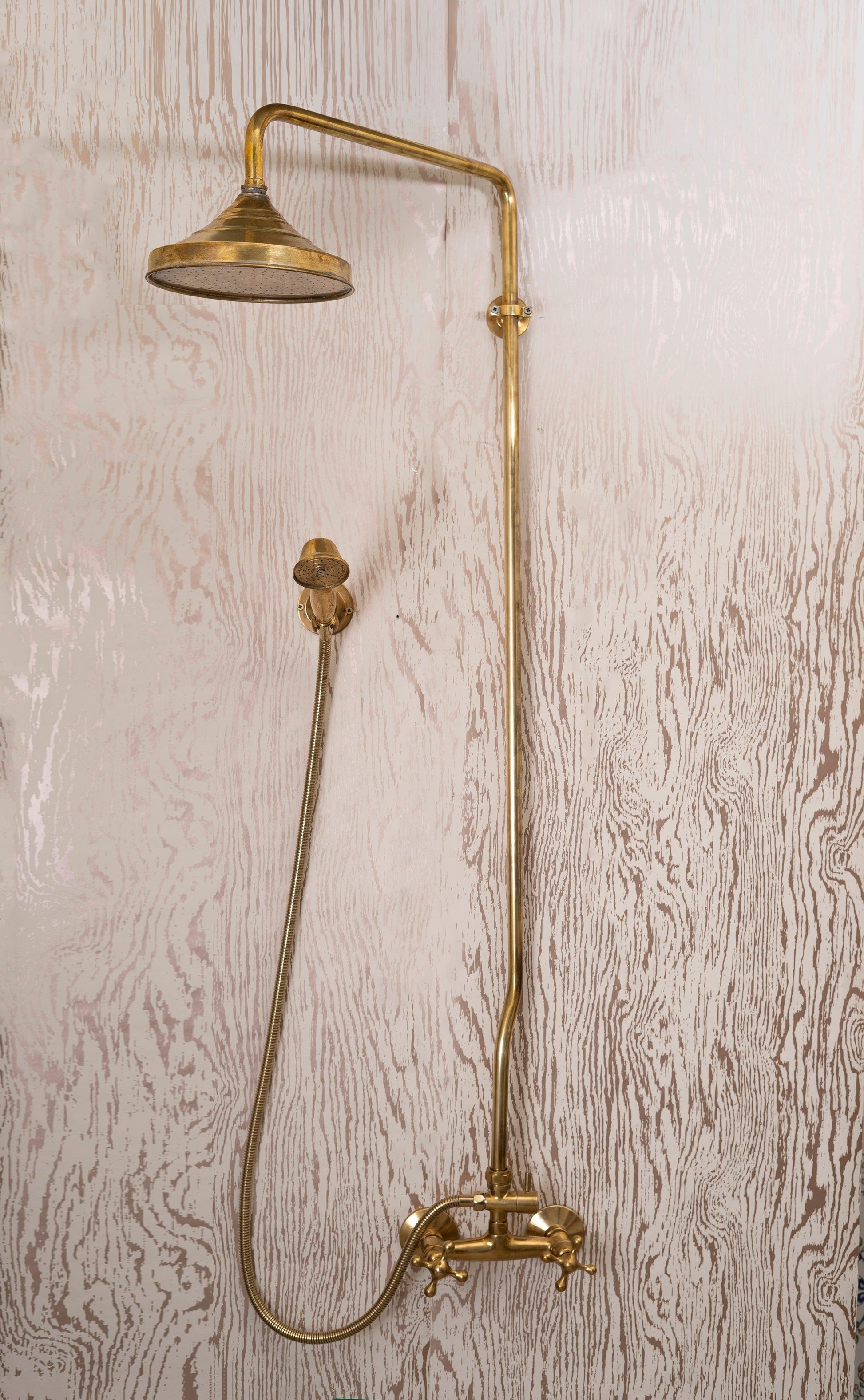

Layout & dimensions
Schematic, not to scale. Heights are common US guidelines – confirm with your plumber and local code.
- Overall height measures 51" H.
- The shower arm extends 18".

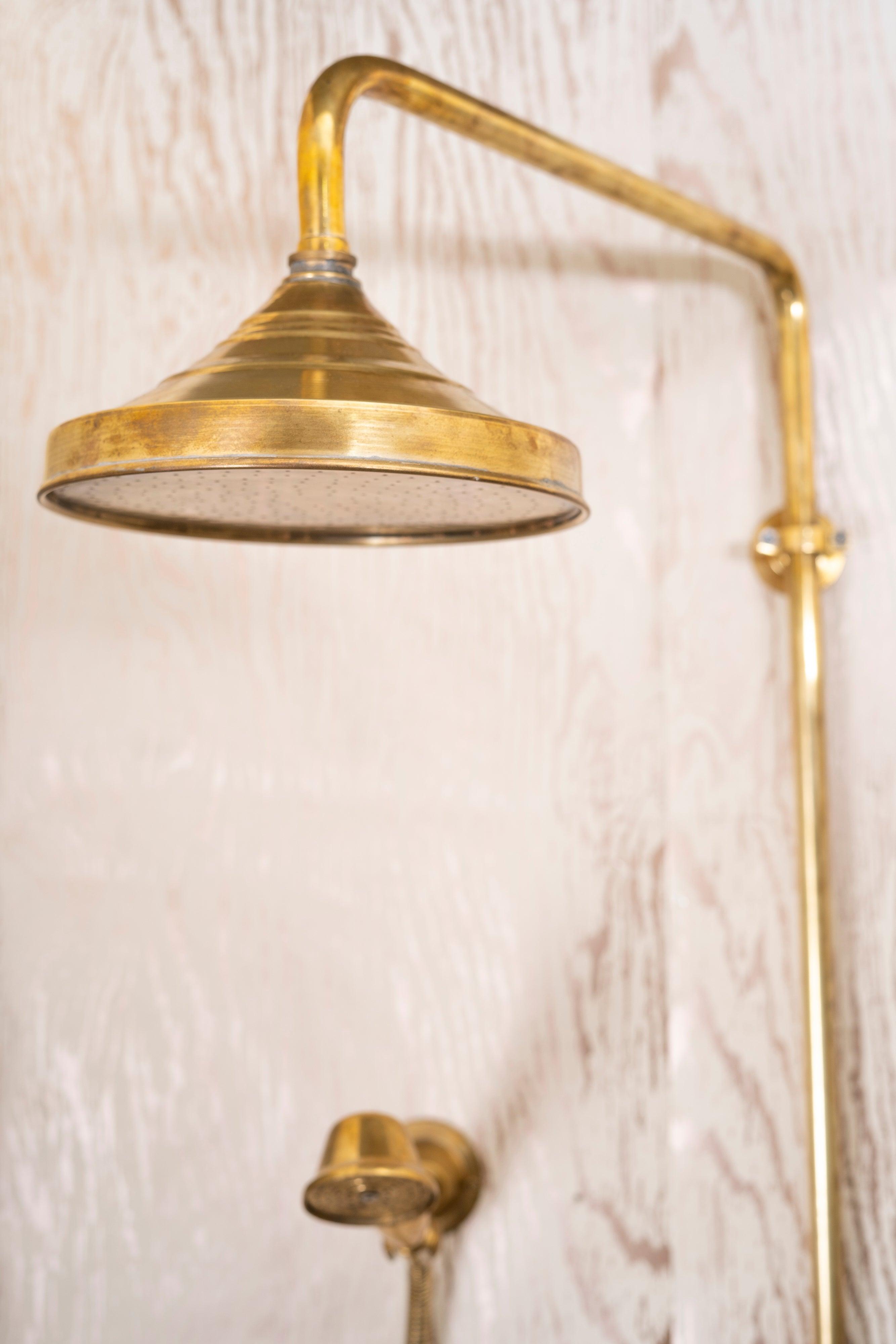

- 8" diameter rainfall shower-head.
- 1/2" IPS riser.
- 6" centers.
Features & design
- High-quality solid brass material for durability and corrosion resistance
- Compatible with standard plumbing systems in the USA, AUS , UK
- Solid brass – not plated, so nothing can chip, peel or flake
- Unlacquered living finish that develops a warm natural patina
- Exposed wall-mounted mixer – no in-wall valve to install
- Handcrafted by skilled artisans
Inspired by heritage European and Moroccan bathhouses, it pairs classic proportions with honest raw brass that ages from bright gold to a soft antique tone. Beautiful with zellige, marble, subway tile or plaster in vintage, farmhouse, traditional and modern-luxury bathrooms.
Installation (US plumbing)
- Plan the height. The rain head should land at about 80" from the floor.
- Rough-in. Install two ½" NPT female stub-outs (hot left, cold right) at 6" centers, level – about 40–45" from the floor.
- Finish the wall and flush the lines.
- Fit the unions. Thread the eccentric unions in with PTFE tape and adjust them to the mixer centers.
- Mount the mixer. Fit the wall flanges and tighten the union nuts with the supplied washers.
- Fit the riser, arm and head, secure the wall bracket and connect the handheld hose.
- Test. Open the water slowly and check every joint for leaks.
Most US jurisdictions require an anti-scald (pressure-balance or thermostatic, ASSE 1016) shower valve – a licensed plumber can confirm local code. Installation instructions are sent with every order.
Specifications
| Material | Solid unlacquered brass |
|---|---|
| Type | Exposed wall-mounted mixer |
| Valve | 2-way |
| Outlets | rain shower head + handheld |
| Connections | ½" NPT (IPS) – 2 × hot & cold, 6" centers |
| Finish | Unlacquered – develops a natural patina |
| Use | Indoor bathrooms; selected outdoor installations |
FAQ
Do I need a rough-in valve for an exposed brass shower system?
No. An exposed shower system has its mixer on the wall, so you only need two ½" NPT hot and cold stub-outs – no valve inside the wall.
What spacing do the hot and cold stub-outs need for an exposed shower mixer?
Plan the two ½" NPT stub-outs at 6" centers, level with each other. The eccentric unions let you fine-tune the spacing slightly.
How high should the water inlets be for an exposed rain shower system?
Inlet height + riser height should place the rain head at about 80–84" from the floor – usually inlets at roughly 36–45".
How does the diverter switch between the rain shower head and the handheld shower?
The diverter on the riser above the mixer sends water up to the rain head or out to the handheld – turn it to choose. The mixer handles set the temperature.
Is this unlacquered brass shower compatible with standard US plumbing?
Yes. All water connections are standard ½" NPT (IPS), so any licensed US plumber can install it with ordinary fittings.
Will an unlacquered brass shower fixture tarnish or develop a patina?
Yes – it is a living finish that slowly darkens to a warm antique patina. That is natural, not a defect; a brass polish restores the original shine whenever you like.
How do I clean an unlacquered brass shower without damaging the finish?
Rinse, wash with mild soap and a soft cloth, then dry. Avoid bleach, acids and abrasive pads.
Do you offer trade pricing on brass shower systems for designers and contractors?
Yes – interior designers, contractors and hotels can email contact@zayian.com for trade and bulk pricing.
